VERTICAL INJECTION HORIZONTAL CLAMPING TYPE MOULDING MACHINE

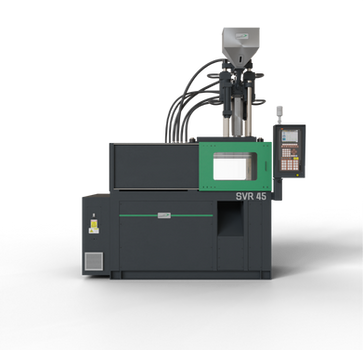

vertical injection horizotal clamping type moulding machine front view
vertical injection horizotal clamping type moulding machine side view

SV R

VERTICAL INJECTION HORIZONTAL CLAMPING RAM TYPE MOULDING MACHINE

With vertical injection and horizontal clamping, you can have the best of both technologies, auto drop and full auto operation mode of horizontal machines and space-saving of vertical injection.



Due to the vertical injection unit, the machine becomes very compact and provides high production output due to toggle/ram-type clamping units

MINIMAL FOOTPRINT

With a vertical injection unit and clamping unit, size of the machine becomes much smaller.

ERGONOMIC DESIGN

Designed with operator comfort in mind, the height of clamping unit is such that it is easy to operate the machine comfortably.

4 TIE ROD

Equipped with 4 tie rod clamping unit for smooth and stable clamping unit movement, precise clamping control and eliminating all the vibrations, providing uniform distribution of clamping force inside clamping area.

RAM TYPE CLAMPING

Clamping unit is equipped with a ram type clamping cylinder which provides fast and stable clamping pressure, while also being totally maintenance free, providing better control of clamping unit and increased mould safety

HIGH SAFETY

Multiple-level safety is provided as standard for mould safety and operator safety. high-level mould safety with multi-stage operator protection, and system protection are implemented.

ADVANCED CONTROLLER

Equipped with LNC controllers which are easy to operate while providing advanced features as standard, such as detailed production tracking, machine operational statistics, remote monitoring and control, user profiles, Automation integration, Industry 4.0 devices integration, and much more.

GREENDRIVE

Greendrive hydraulic system is also available, which provides higher machine efficiency, silent machine operation, better accuracy, reduces machine operational temperature, and increases machine's service life.

HIGH PRECESION

With ram-type clamping, precise injection unit and greendrive hydraulics, you can expect precise moulding process control and high production output.

MADE IN INDIA

Designed, engineered and manufactured in India, which translates to better machine quality and higher trust, for customers, it is beneficial due to our big service network, better support, and stronger availability.

best vertical injection horizotal clamping type moulding machine front view

HORIZONTAL CLAMPING

With a toggle/ram type horizontal clamping unit, you can expect high production output and auto drop ejection function.

With the toggle type clamping unit, you have 5-point toggle style clamping, and with the ram type clamping unit you have a hydraulic ram for clamping force, both technologies have their advantages and disadvantages.

No matter which type of clamping unit you choose you receive all the clamping adjustment and operation features.

vertical injection horizotal clamping type moulding machine top view

FAST AND STABLE CLAMPING PRESSURE

All vertical injection horizontal clamping type moulding machines use the ram-type clamping unit.
There are significant advantages of the ram-type clamping unit over the conventional toggle-type clamping unit, such as

  • No extra maintenance is required.

  • No need to regularly lubricate or grease the clamping unit.

  • No regular complete cleaning is required.

  • Longer operational life.

  • High accuracy and precision.

  • Better distribution of clamping force.

  • Better control over clamping unit pressure and speed settings.

  • Stable clamping pressure.

  • Fast and smooth clamping unit operation.

  • Increased mould safety.


Designed for high stability and reliability, all the machines are designed with four tie-rod style clamping unit for stable and vibration-free clamping unit movement, four tie-rods provide high structural strength and smooth operation.
Ram type clamping unit combined with four tie-rod type clamping unit, translates to a better distribution of clamping force over the mould, providing a better moulding result.

vertical injection moulding machine injection unit

DIVERESE INJECTION UNIT

The injection is the only way to control material flow inside the mould thus higher control over material flow and injection position is required to achieve high-quality moulded components.

With a highly customizable injection unit you can choose the injection unit that suits your production requirements.

Using an accurate measuring apparatus and highly sensitive controller we can accurately control the positioning of injection to control the exact amount of material entering the mould thus producing the best moulding results and these results can be reproduced an infinite number of times.

The Hydraulic injection system is highly reliable and robust with our optional bimetallic screw injection unit and can be taken to next level of usage with high-density materials.

Multiple Heating Zones provide accurate control over the material melting process inside the barrel, you can set custom heating stages for materials and melt the material accurately resulting in reduced time material has to stay at higher temperatures thus preserving material composition and integrity.

Multiple Injection Unit Screw Options depending on your production requirement you can choose your ideal injection unit.

vertical injection moulding machine injection unit screw size specifications
vertical injection moulding machine injection unit shot weight specification
greendrive series vertical injection moulding machine controller

CONTROLLER

All our machines come equipped with LNC controller as standard.

LNC controllers are best in the segment, they provide a high level of control and precision and advanced features that many controllers in this segment can not provide.

We have two controllers depending on the machine model that you choose

In5800 - LNC controller with an 8-inch HMI display and similar performance to the other higher-end LNC controller.

In6800 - LNC controller with a 10-inch HMI display, high-end features, and top of the line performance.

Both controllers have advanced features for machine control and user inputs while being user-friendly and easy to operate.

Equipped with features like remote diagnostics for problem resolutions, EUROMAP configuration, remote monitoring, inter-machine data compatibility, customizable functions, easier integration for automation devices such as robots, Easier integration of industry 4.0 technology, and much more.

We also provide other controllers depending on our customer's requirements but we recommend LNC controllers with our machines over all other controllers.

greendrive series vertical injection moulding machine safety devices

SAFETY IS HIGHEST PRIORITY

When operating machines that are designed to operate at high temperatures and pressure, safety should be the highest priority, with our machines safety is a core part of the design as we have integrated multiple safety features in our machines to reduce the number of accidents to zero.

Equipped with multiple safety devices such as.

  • Safety light curtains

  • Side safety doors

  • Emergency switches

  • Mechanical pressure indicators

  • Electrical redundancies

  • Electrical safety

  • Emergency light with buzzer

  • Mechanical safety for mould and machine safety.


All safety devices work together to create a safe operating experience for the operator, reducing the chance of accidents to almost zero.

MACHINE OPERATION

  • CYCLE START(DOOR CLOSE)

  • MOULD CLOSE

  • MOULD SAFETY STAGE

  • CLAMPING

  • INJECTION

  • COOLING START

  • PLASTICIZING

  • SUCKBACK

  • COOLING STOP

  • CLAMPING RELEASE

  • MOULD OPEN

  • EJECTION

Horizontal clamping vertical injection type moulding machine technical specifications

MACHINE PHOTOS

SUPPORT FOR VERTICAL INJECTION HORIZONTAL CLAMPING MACHINES

Looking for resources or support for SV-R machines, visit our support page for all the resources.
